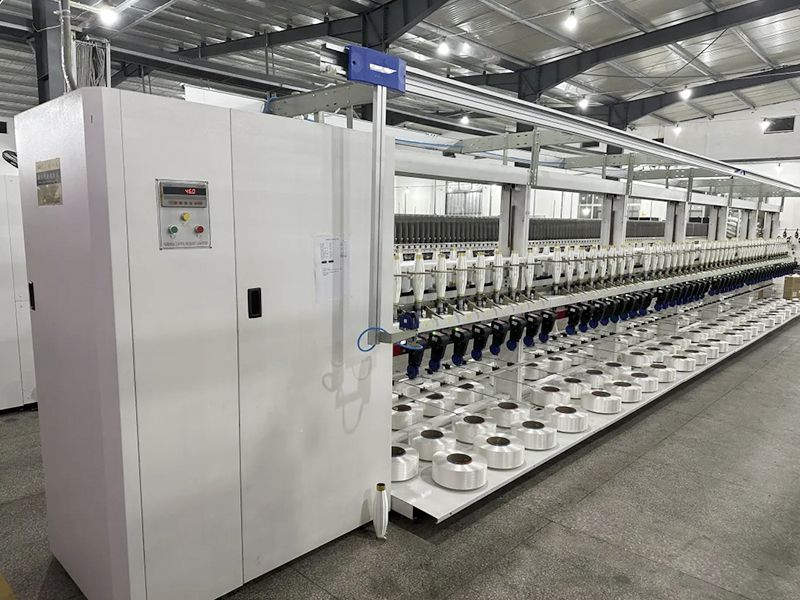

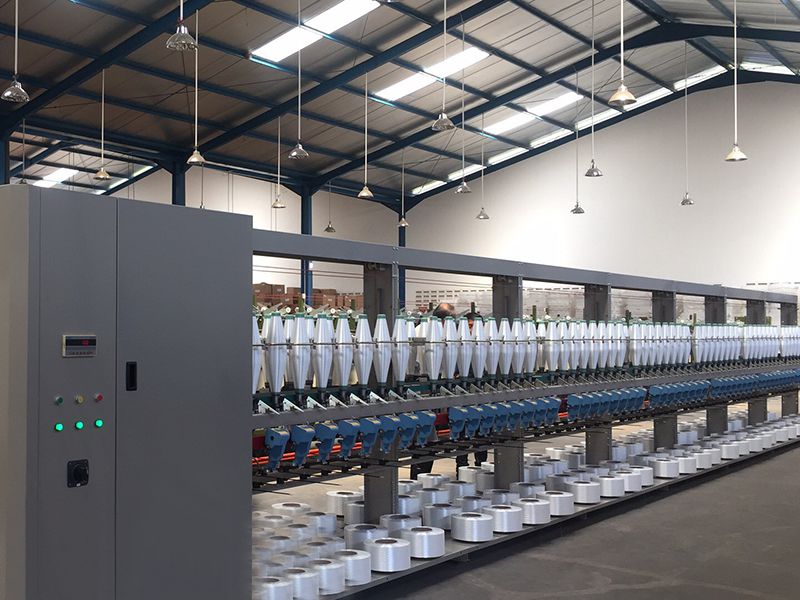

KV2002 DIGITAL CONTROL PIRN WINDING MACHINE

KV2002 DIGITAL CONTROL PIRN WINDING MACHINE

KV2002 high-speed pirn winding machine,the pre-equipment matching the relevant compound twister, is available to wind all kinds of continuous filament. Individual meter counter and cutter is optional for reducing material waste.


The main technical parameters

Spindle Number

64  80  96  112

Assemble ends

1-4

Yarn speed

Max. 628m/min

Spindle speed Max.

Max 5000r/min

Spindle driving

Tangential belt

Winding direction

S/Z

Installed power

2.9kw

Overall size

L*W*H= 8800mm×1230mm×1850mm
