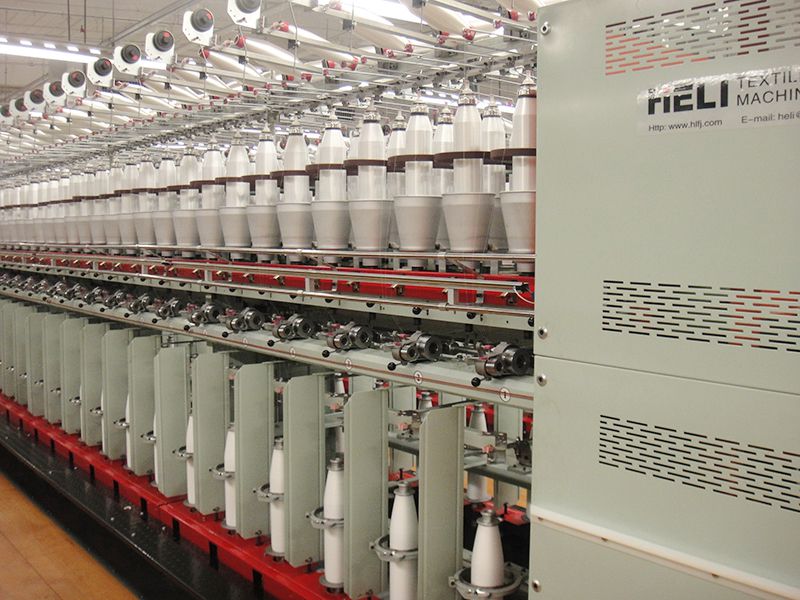

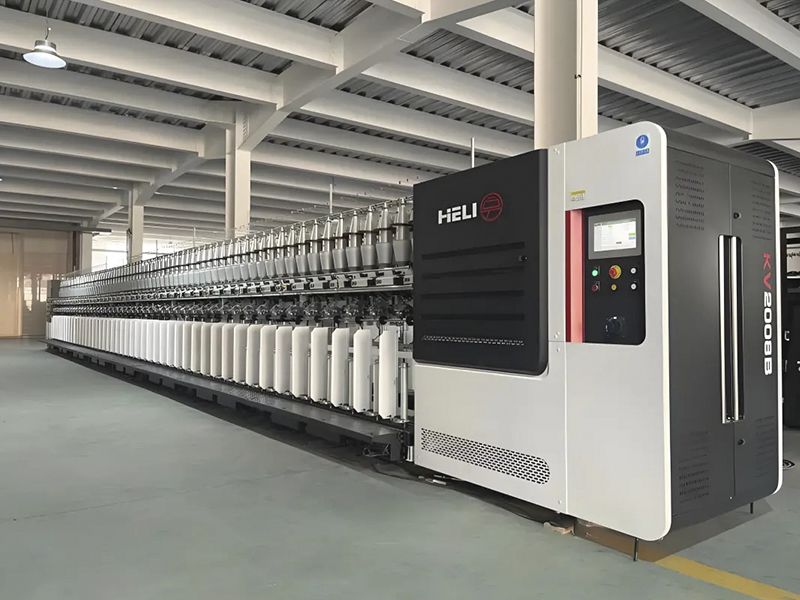

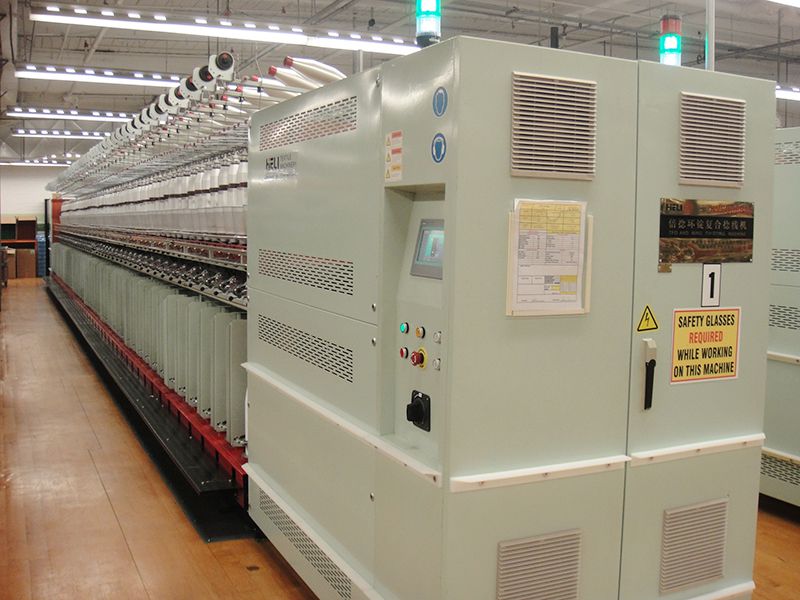

KV2008B TFO+RING TWISTING MACHINE

KV2008B TFO+RING TWISTING MACHINE

KV2008 system is specially designed for making thicker thread and in-bonded yarn in one working process:

※ One motor per spindle & automatic spindle stop for yarn breakage, no labor needed in production

※ The exclusive active feed roller and top deck with TFO running system result in high-class final yarn and with lower voice, power consumption and production cost

※ Main configuration from premium brands, e.g. Siemens touch screen & PLC, to keep the machine in a stable state and with a long service life.

The standard version is driven by tangential belt, and automatical spindle system is optional.

Automatic spindle stop system (optional)

One motor for pre-twist group(2 or 3 spindles) and one motor for one down-twist spindle. In case a thread breaks, the relevant spindle(s) stop automatically, and the roller is lifted up simultaneously. No labor is required during production.

The spindle is with energy-saving synchronous motor, that is adopted to keep the same speed between spindles and guarantee the minimum twist difference to result in the high-class quality of final yarn.


The main technical parameters


2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

100D-2000D

100D-2000D

Yarn count range

200D-4000D

300D-6000D

Supply spindle No. (7 sect.)

252            288

252            288

Take up  spindle No. (7 sect.)

126            144

84             96

Twist direction

S or Z

S or Z

Feed device

Active double feeding roller

Active double feeding roller

Take up spindle speed

4500rpm-6000rpm

4500rpm-6000rpm

Supply capacity

2000g-3000g

2000g-3000g

Take up capacity

2000g-4000g

2000g-4000g

Overall size

L*W*H= 18800mm×1580mm×1880mm

L*W*H= 18800mm×1580mm×1880mm
