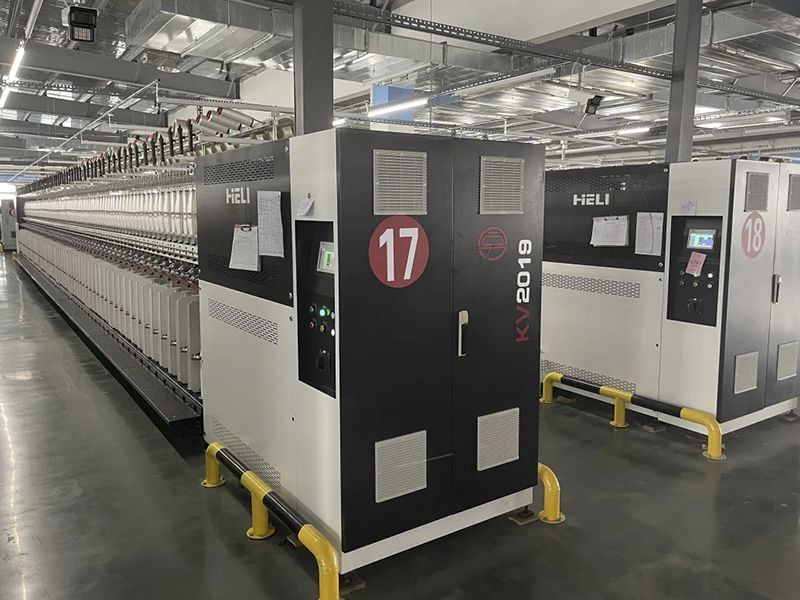

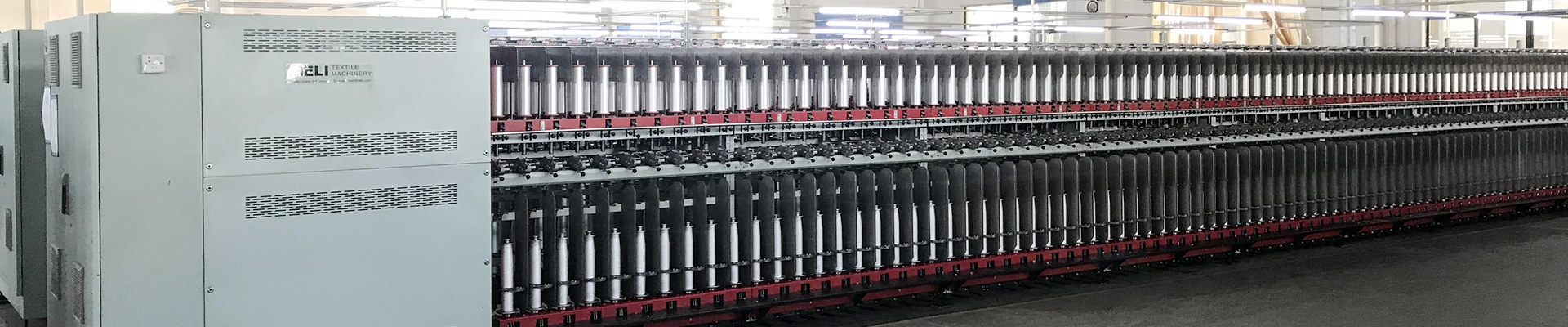

KV2019 Double Twisted Ring Ingot Composite Twisting Machine

KV2019 Double Twisted Ring Ingot Composite Twisting Machine

The KV2019 model is an upgraded and new generation of composite twisting machine innovatively launched based on the mature technology of the KV2005 model to reduce operational labor. The upper layer of this product can be initially twisted with double twist or ring ingot. The initial twist roll is 1 kilogram, and the lower layer is double twisted with 2 kilograms. The upper layer of double twist has low noise, energy saving, multiple ingots, and high output. The large roll significantly reduces operational labor.

The main technical parameters

2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

70D-500D

70D-500D

Yarn count range

140D-1000D

210D-1500D

Supply spindle

          360

360

Take up  spindle

           180

120

Twist direction

S or Z

S or Z

 Feed device

Double feeding roller

Double feeding roller

Take up spindle speed

4500rpm-6800rpm

4500rpm-6800rpm

Supply capacity

1000g-1500g

1000g-1500g

Take up capacity

2000g

2000g

Overall size

L*W*H= 18900mm×1500mm×1830mm

L*W*H= 18900mm×1500mm×1830mm
