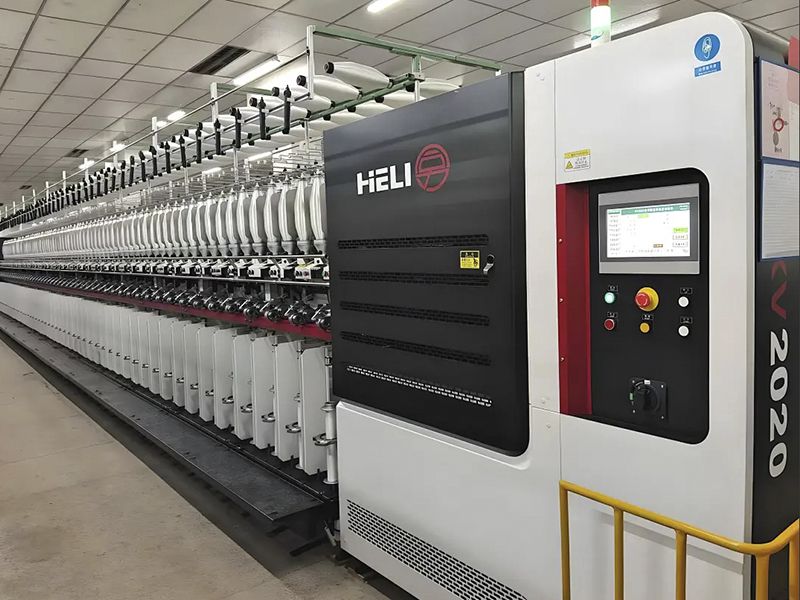

KV2020 high-speed composite twisting machine

KV2020 high-speed composite twisting machine

The KV2020 model is the result of years of dedicated efforts by the R&D team of New Heli Company, specifically designed for the production of long and fine filaments, achieving a new level of spindle speed performance in the industry. The speed of the twisted strand can reach up to 10000 revolutions per minute. Producing long filament threads under 150D can double the production capacity, making it an ideal twisting equipment for high-end long filament sewing thread manufacturers to update and upgrade.

The main technical parameters

2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

50D-500D

50D-500D

Yarn count range

100D-1000D

150D-1500D

Supply spindle

          360

360

Take up  spindle

           180

120

Twist direction

S or Z

S or Z

Feed device

Double feeding roller

Double feeding roller

Take up spindle speed

5000rpm-10000rpm

5000rpm-10000rpm

Supply capacity

1000g-1500g

1000g-1500g

Take up capacity

1000g或2000g

1000g或2000g

Overall size

L*W*H= 18900mm×1500mm×1830mm

L*W*H= 18900mm×1500mm×1830mm
